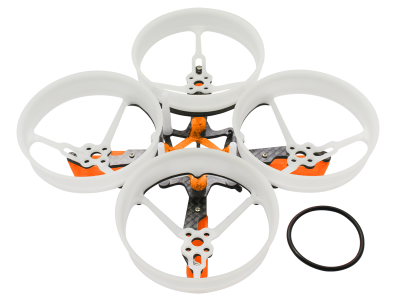

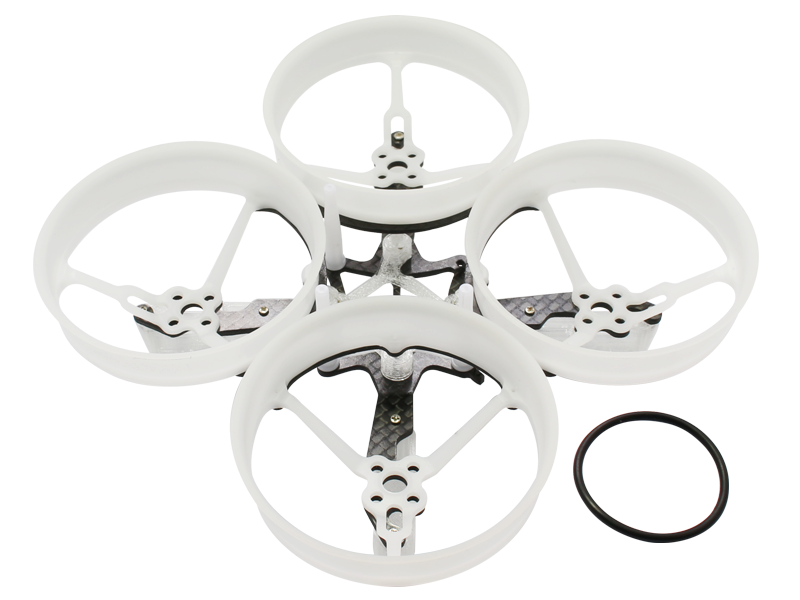

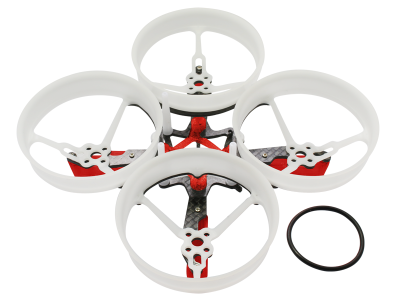

Rakonheli CNC Delrin and Carbon 80mm Ducted Quad X Kit (Brushless Motor) - RKH 80DQX

Overview

Upgrade your RC model's structural rigidity, precision, and crash durability with the Rakonheli CNC Delrin and Carbon 80mm Ducted Quad X Kit (Brushless Motor) specifically engineered for RKH 80DQX. Precision-manufactured by RAKONHELI from 3K Pure Carbon Fiber & CNC Delrin (POM) Engineering Acetal, this component eliminates mechanical slop and flex found in stock plastic parts while maintaining an optimal strength-to-weight ratio for demanding performance.

Key Features & Specifications

• Main Size: 80mm Frame, 1.9inch Propeller Duct, 9x9mm Brushless Motor Mount.
• Size FC: 20x20mm.
• Size ESC: 11x18mm.
• Material: Delrin, TPU, 3K Pure Carbon Fiber and Stainless Steel Screws.
• Can setup Ducted or No Ducted Brushless Quad X.

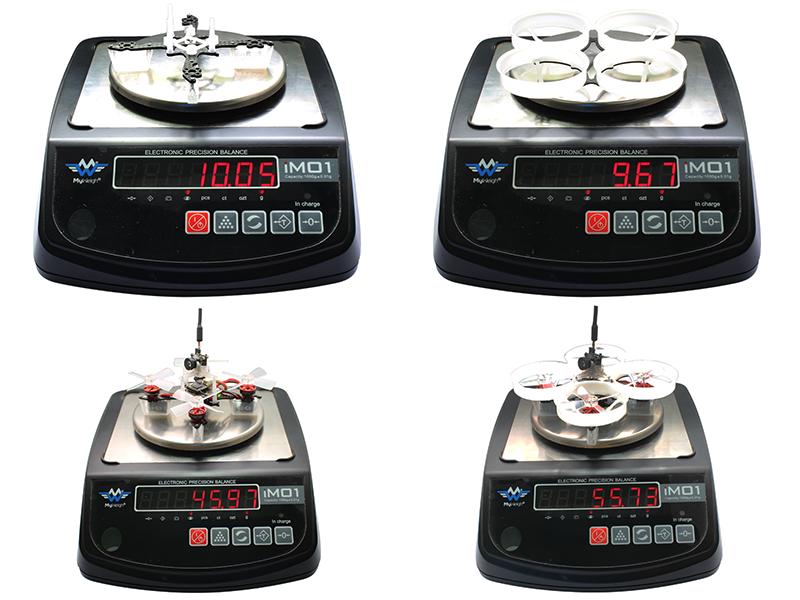

• Weight: Ducted Quad X Kit: 19.72(g) = 0.70(oz).
• No Ducted Quad X Kit: 10.05(g) = 0.35(oz).
• Part Number (SKU): 80DQX980
• Available Anodized Finishes: White, Red, Yellow, Green, Blue, Orange
• Compatibility: Direct fit for RKH 80DQX.

Package Includes

• 1 x 80mm 3K Pure Carbon Fiber Frame Kit (included hardware).
• 1 x White TPU 20x20mm FC Mount.
• 2 x Rubber O-Ring 25x2mm.

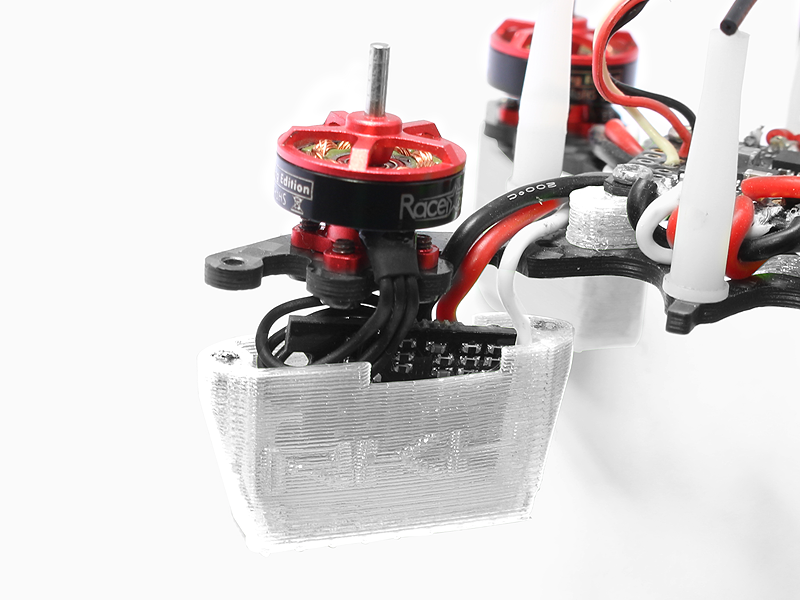

• 4 x White TPU 11x18mm ESC Mount.
• 4 x White Delrin 1.9inch Propeller Duct.
• 4. Needed To Complete:
• a) FC: PIKO BLX Micro Flight Controller - Change the Way You FPV
• b) Receiver:
• FuriousFPV LR1000 Mini Receiver for Frsky
• or - Lemon Rx DSMX Compatible Diversity Satellite (DSM2 Backward Compatible But Must Use DSMX Compatible Primary Receiver)
• or - Flysky FS-A8S FS A8S 2.4G 8CH Mini Receiver with PPM i-BUS SBUS Output
• c) Motors: 1103, 1104, 1105
• d) ESC: 1-2S 7A
• e) Camera: FPV Camera and Mount
• f) Propellers: FuriousFPV High Performance 1935-4 Propellers (2CW and 2CCW)
• g) Battery: 2S 300mAh Battery
