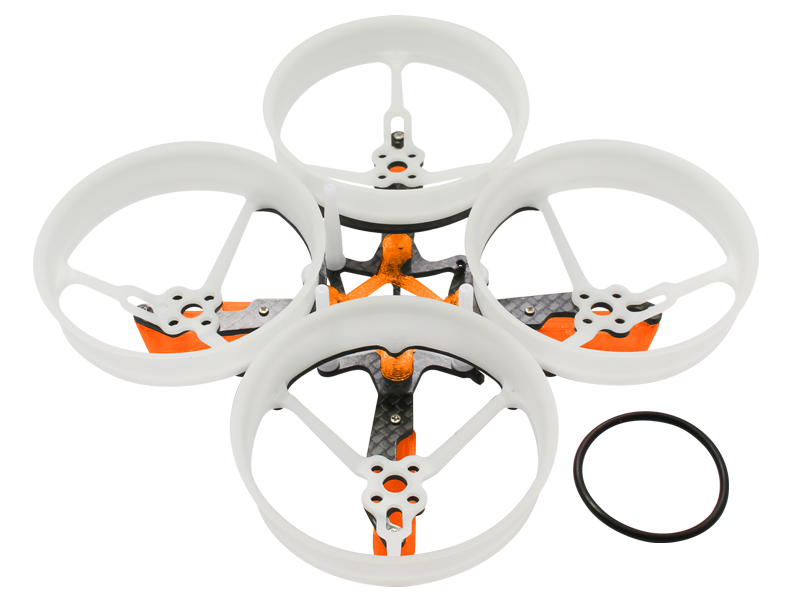

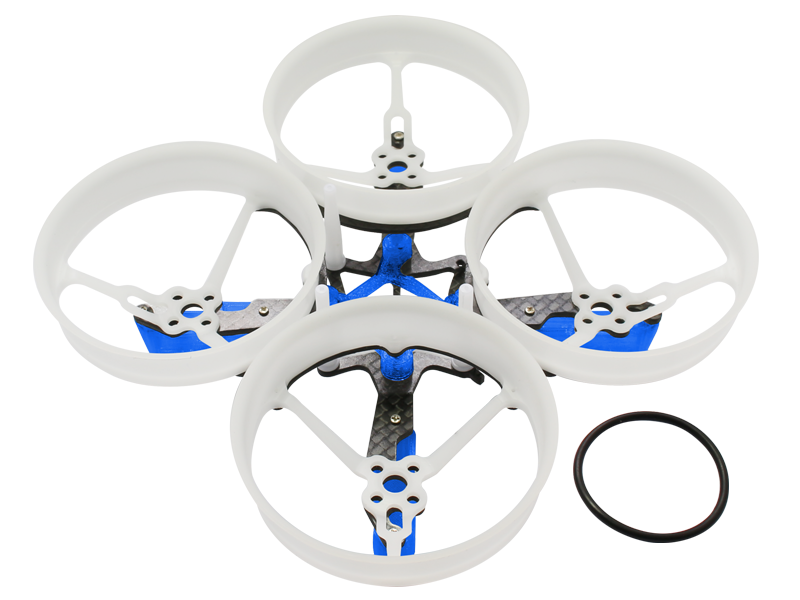

Rakonheli CNC Delrin and Carbon 80mm Ducted Quad X Kit (Brushless Motor) - RKH 80DQX

Original price $39.99 - Original price $39.99
Original price
$39.99 - $39.99
Current price $39.99
SKU 80DQX980

1. Description:
- Main Size: 80mm Frame, 1.9inch Propeller Duct, 9x9mm Brushless Motor Mount.

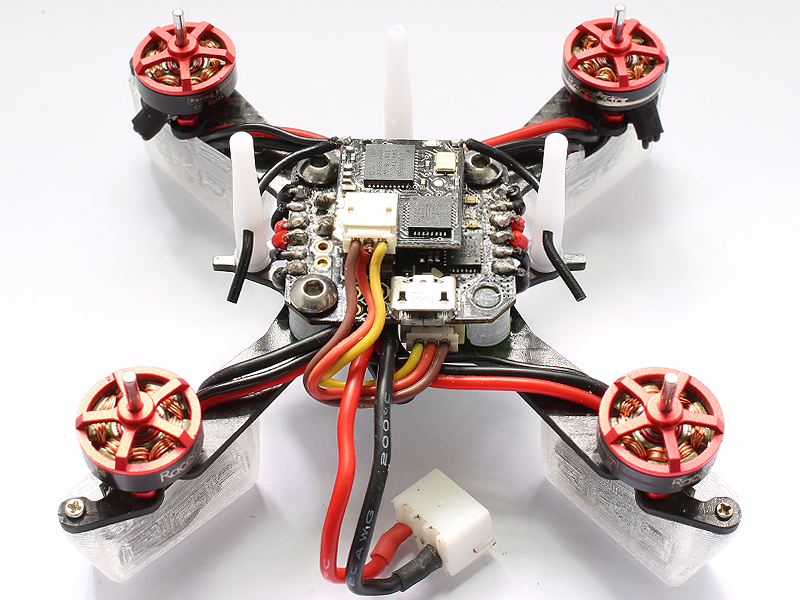

- Size FC: 20x20mm.

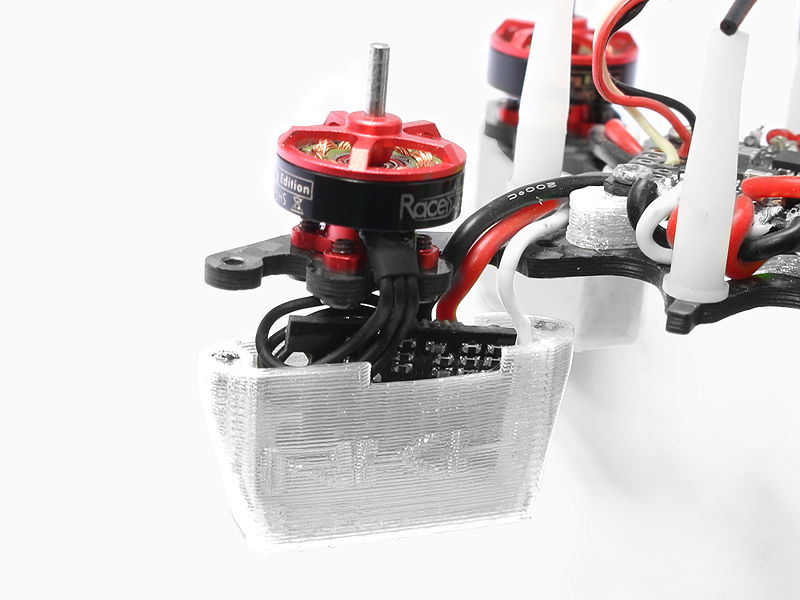

- Size ESC: 11x18mm.
- Material: Delrin, TPU, 3K Pure Carbon Fiber and Stainless Steel Screws.

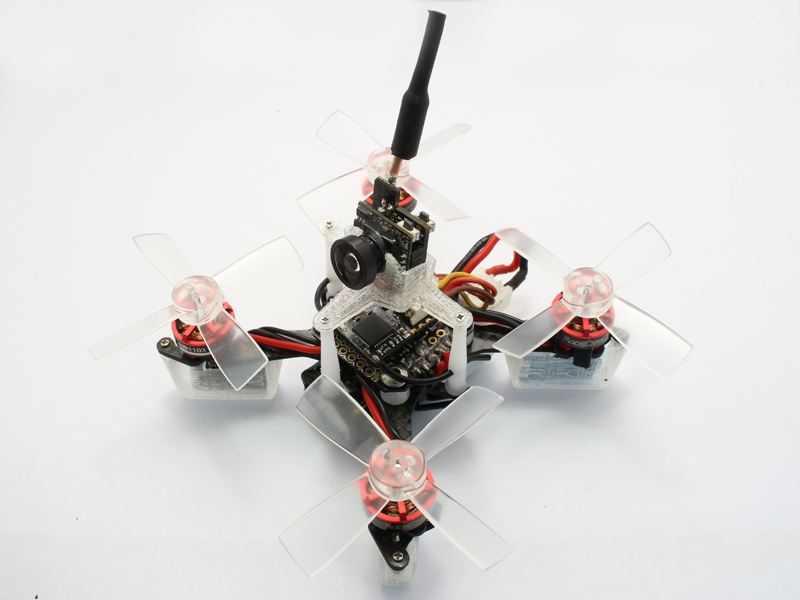

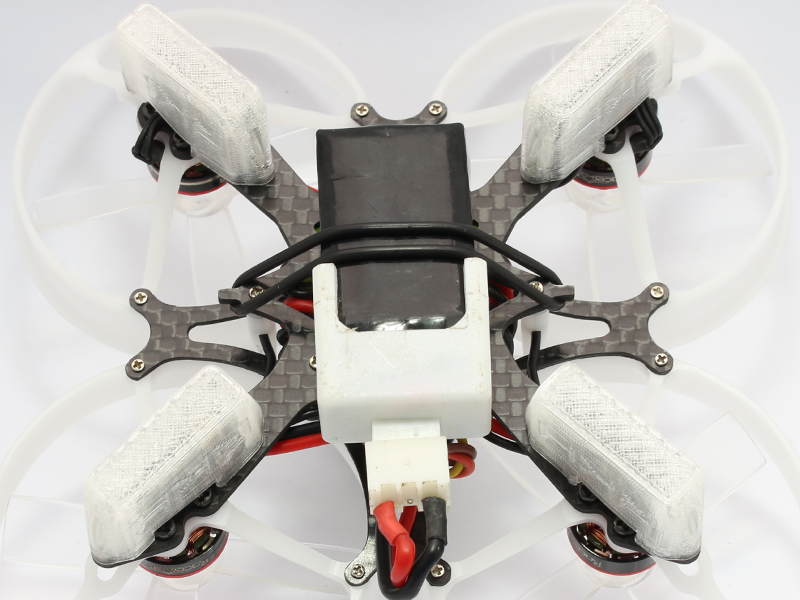

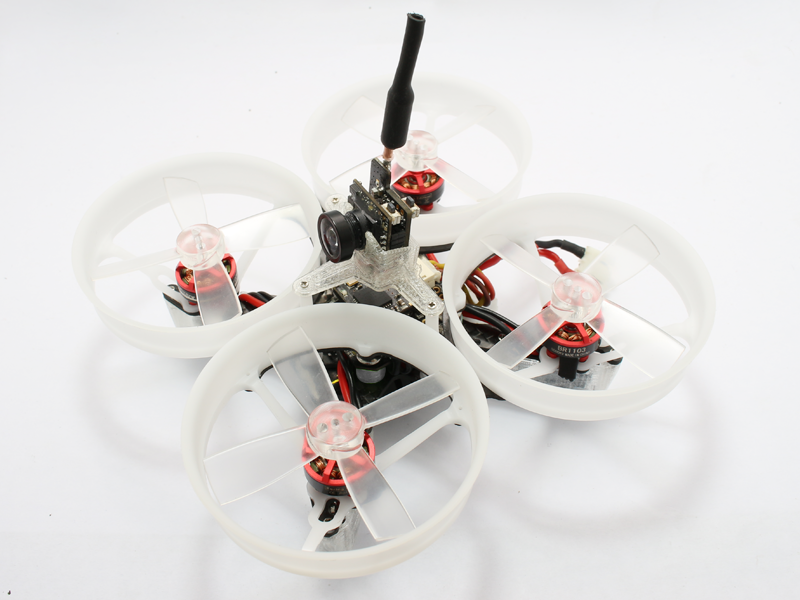

- Can setup Ducted or No Ducted Brushless Quad X.

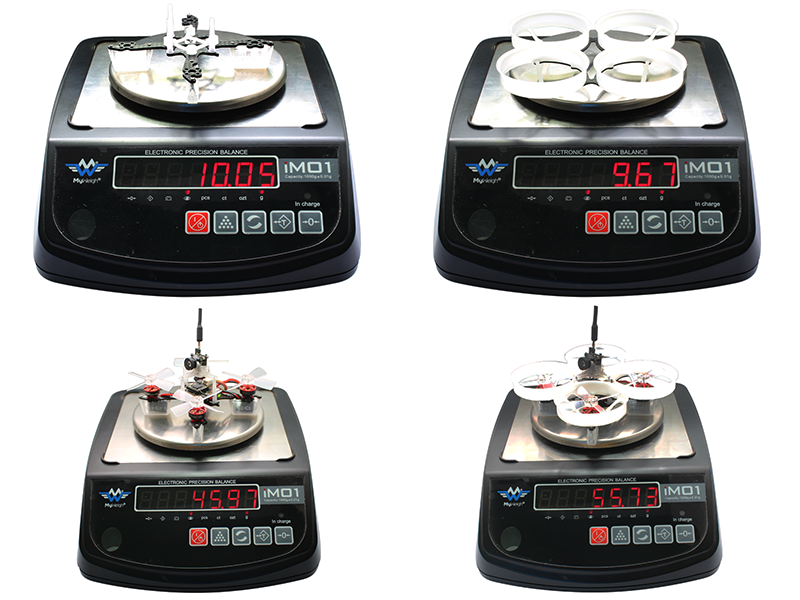

2. Weight:
- Ducted Quad X Kit: 19.72(g) = 0.70(oz).
- No Ducted Quad X Kit: 10.05(g) = 0.35(oz).

3. Package Included:

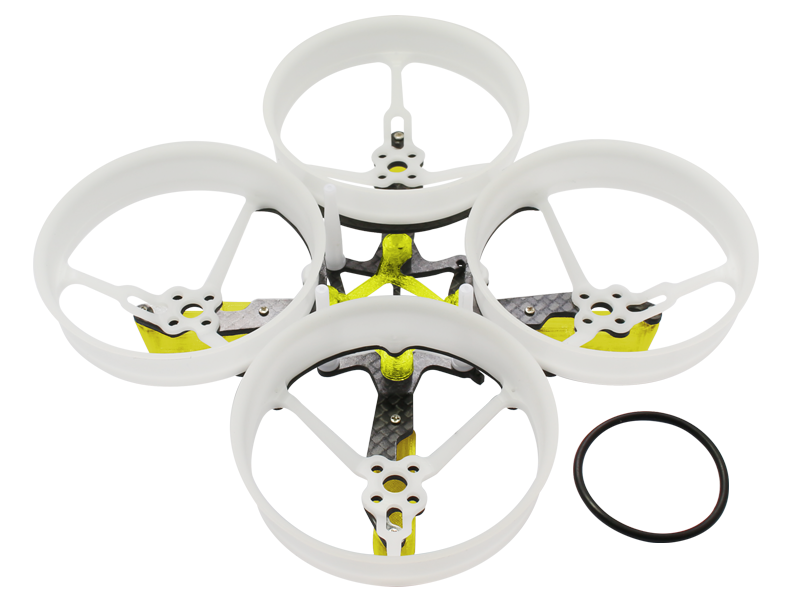

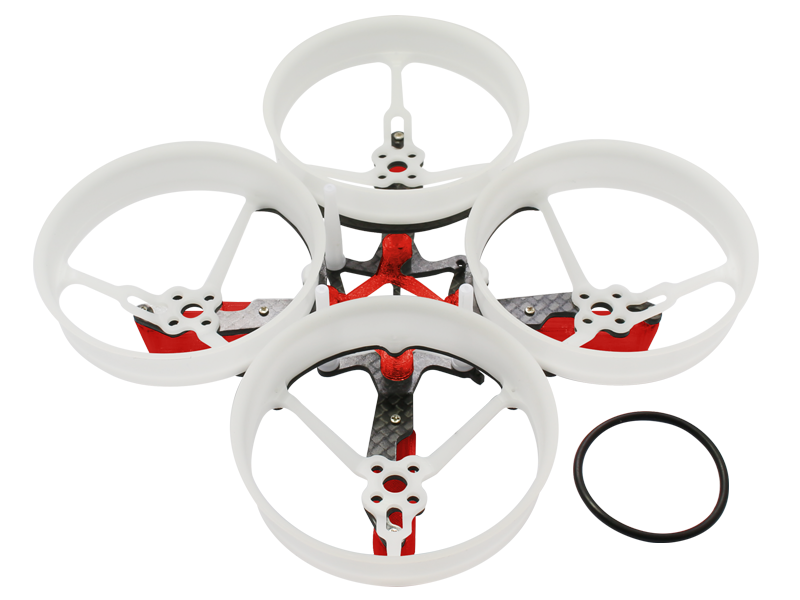

1 x 80mm 3K Pure Carbon Fiber Frame Kit (included hardware).
1 x White TPU 20x20mm FC Mount.
2 x Rubber O-Ring 25x2mm.
4 x White TPU 11x18mm ESC Mount.
4 x White Delrin 1.9inch Propeller Duct.

4. Needed To Complete:
a) FC: PIKO BLX Micro Flight Controller - Change the Way You FPV
b) Receiver:
- FuriousFPV LR1000 Mini Receiver for Frsky
or - Lemon Rx DSMX Compatible Diversity Satellite (DSM2 Backward Compatible But Must Use DSMX Compatible Primary Receiver)
or - Flysky FS-A8S FS A8S 2.4G 8CH Mini Receiver with PPM i-BUS SBUS Output
c) Motors: 1103, 1104, 1105
d) ESC: 1-2S 7A
e) Camera: FPV Camera and Mount
f) Propellers: FuriousFPV High Performance 1935-4 Propellers (2CW and 2CCW)
g) Battery: 2S 300mAh Battery

5. Discuss:

Color: white
