Rakonheli CNC Delrin and Carbon 66mm Ducted Quad X Kit (Brushless Motor) - RKH 66DQX

Overview

Upgrade your RC model's structural rigidity, precision, and crash durability with the Rakonheli CNC Delrin and Carbon 66mm Ducted Quad X Kit (Brushless Motor) specifically engineered for RKH 66DQX. Precision-manufactured by RAKONHELI from 3K Pure Carbon Fiber & CNC Delrin (POM) Engineering Acetal, this component eliminates mechanical slop and flex found in stock plastic parts while maintaining an optimal strength-to-weight ratio for demanding performance.

Key Features & Specifications

• Main Size: 66mm Frame, 40mm Propeller Duct, 9x9mm Brushless Motor Mount.
• Size FC: 16x16mm.
• Size ESC: 11x18mm.
• Material: Delrin, TPU, 3K Pure Carbon Fiber and Stainless Steel Screws.
• Can setup Ducted or No Ducted Brushless Quad X.

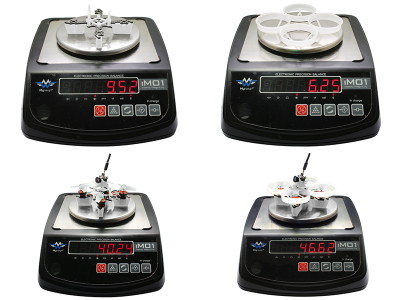

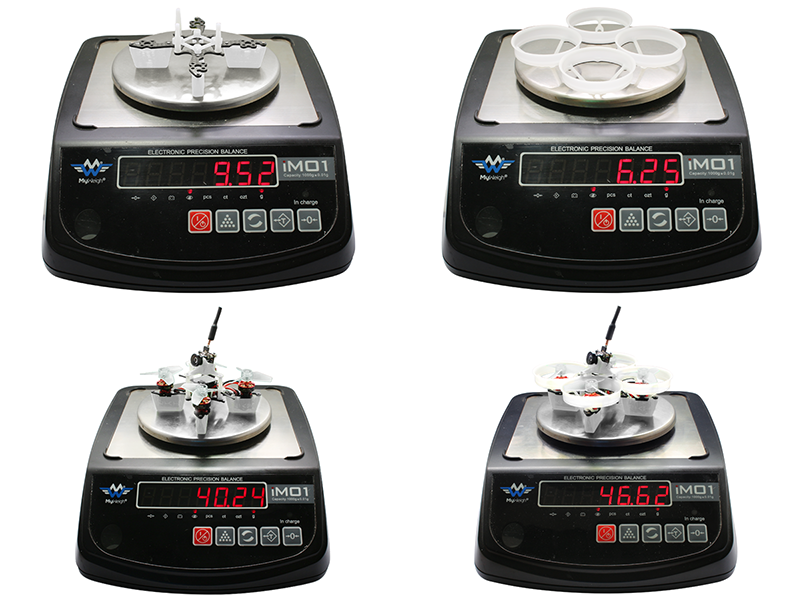

• Weight: Ducted Quad X Kit: 15.77(g) = 0.56(oz).
• No Ducted Quad X Kit: 9.52(g) = 0.36(oz).
• Part Number (SKU): 66DQX980

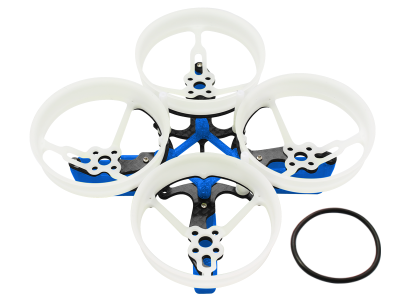

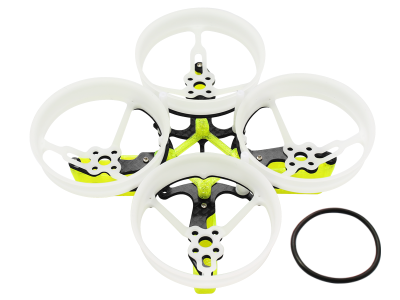

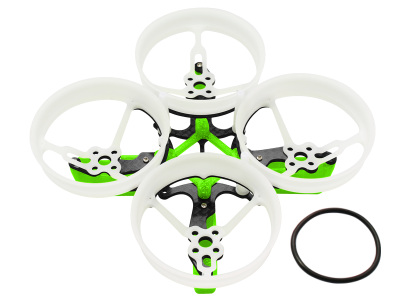

• Available Anodized Finishes: White, Red, Yellow, Green, Blue, Orange
• Compatibility: FuriousFPV MOSKITO 70: Flight Control Board, ESC, Brushless Motors, Propellers.

Package Includes

• 1 x 66mm 3K Pure Carbon Fiber Frame Kit (included hardware).
• 1 x White TPU 16x16mm FC Mount.
• 2 x Rubber O-Ring 25x2mm.
• 4 x White TPU 11x18mm ESC Mount.
• 4 x White Delrin 40mm Propeller Duct.
• 5. Needed To Complete:
• a) FC: Furious FPV Racewhoop Smallest Brushless FC
• b) Receiver:
• FuriousFPV LR1000 Mini Receiver for Frsky
• or - Lemon Rx DSMX Compatible Diversity Satellite (DSM2 Backward Compatible But Must Use DSMX Compatible Primary Receiver)
• or - Flysky FS-A8S FS A8S 2.4G 8CH Mini Receiver with PPM i-BUS SBUS Output
• c) Motors: Furious FPV Brushless Motor 1103 10000KV
• d) ESC: 1-2S 7A
• e) Camera: FPV Camera and Mount
• f) Propellers: Rakonheli 40mm 3 Blade Transparent Propeller (2CW+2CCW; 1.5mm Shaft)
• g) Battery: 2S 300mAh Battery
