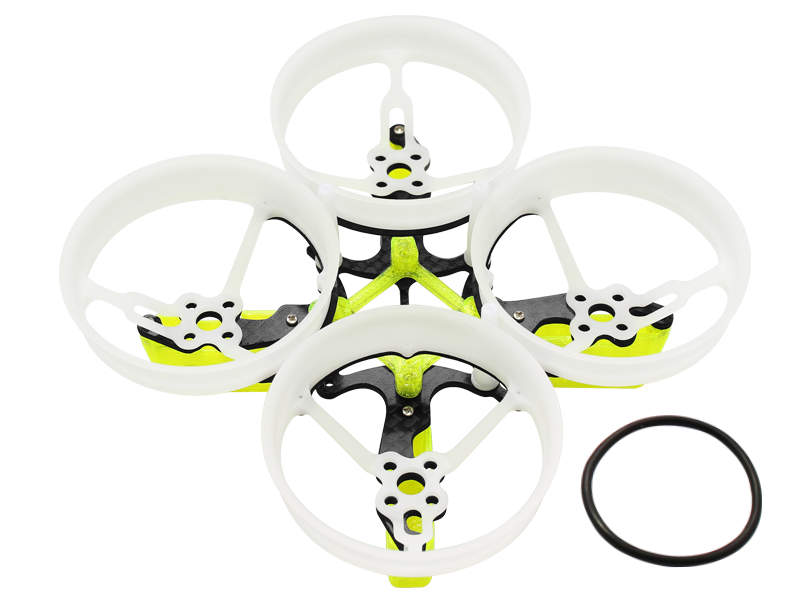

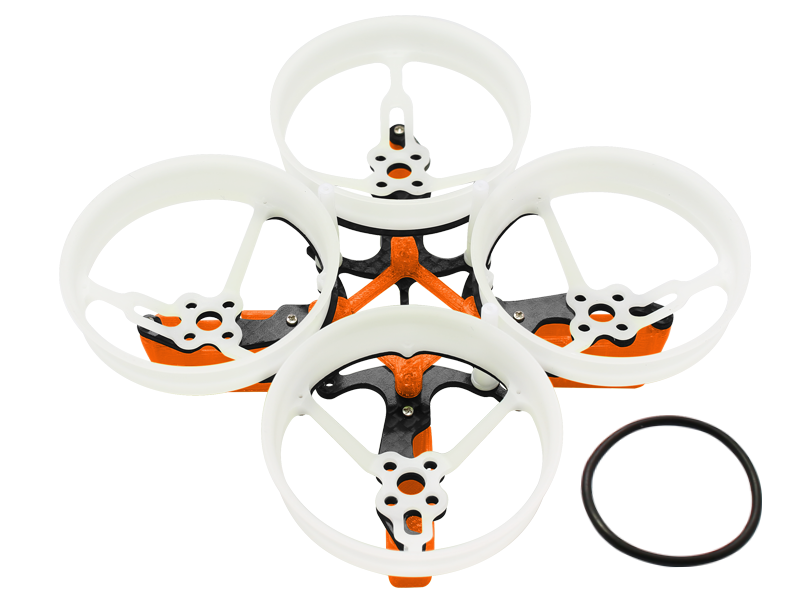

Rakonheli CNC Delrin and Carbon 66mm Ducted Quad X Kit (Brushless Motor) - RKH 66DQX

Original price $36.99 - Original price $36.99
Original price
$36.99
$36.99 - $36.99
Current price $36.99
SKU 66DQX980

1. Description:
- Main Size: 66mm Frame, 40mm Propeller Duct, 9x9mm Brushless Motor Mount.
- Size FC: 16x16mm.
- Size ESC: 11x18mm.
- Material: Delrin, TPU, 3K Pure Carbon Fiber and Stainless Steel Screws.

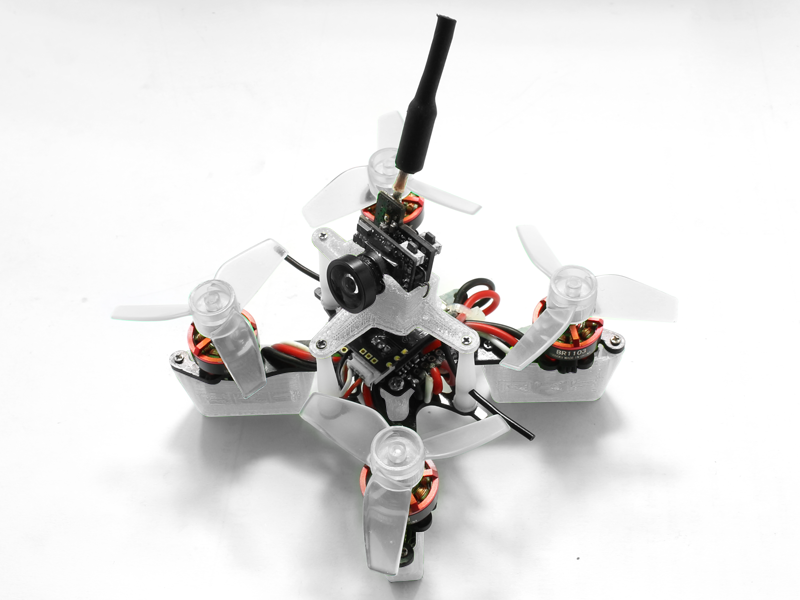

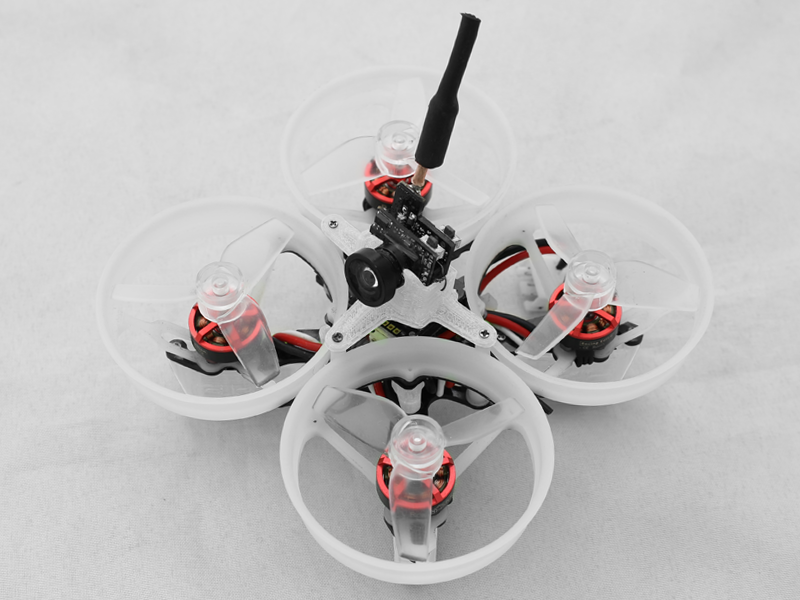

- Can setup Ducted or No Ducted Brushless Quad X.

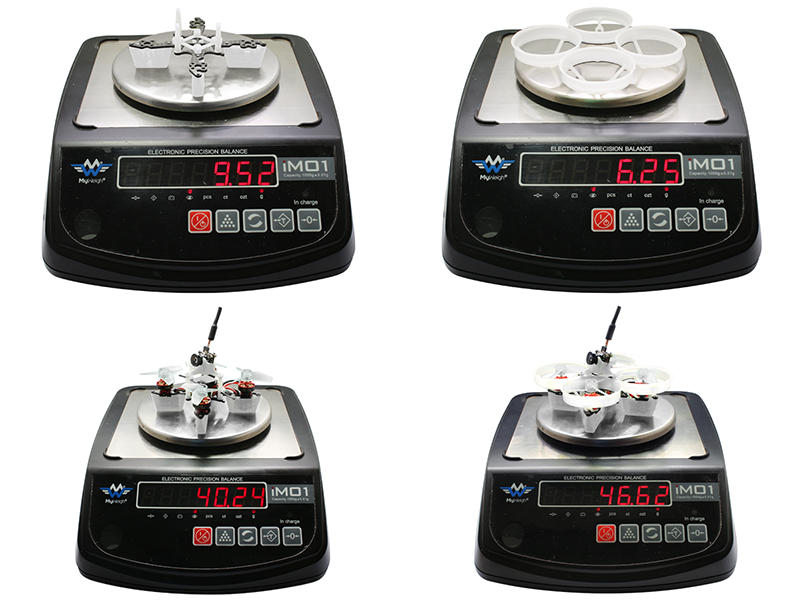

2. Weight:
- Ducted Quad X Kit: 15.77(g) = 0.56(oz).
- No Ducted Quad X Kit: 9.52(g) = 0.36(oz).



3. Compatibility:

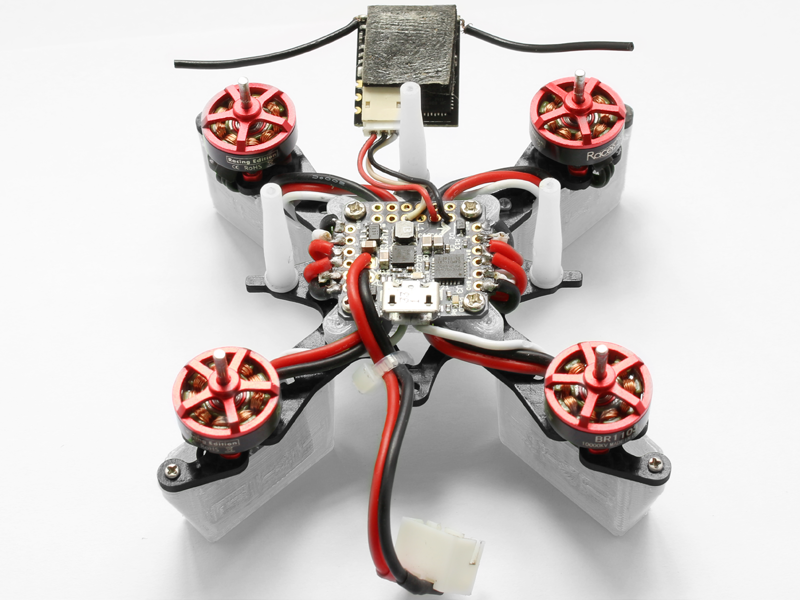

- FuriousFPV MOSKITO 70: Flight Control Board, ESC, Brushless Motors, Propellers.



4. Package Included:

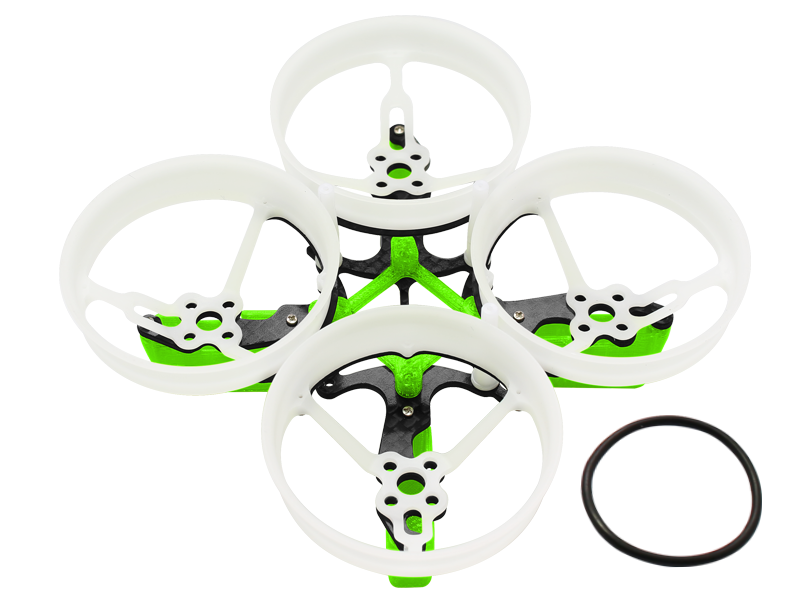

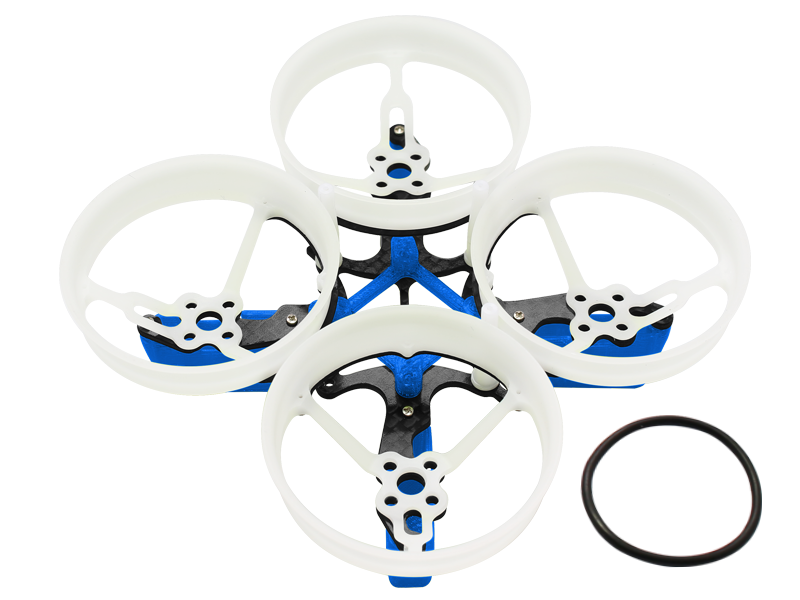

1 x 66mm 3K Pure Carbon Fiber Frame Kit (included hardware).
1 x White TPU 16x16mm FC Mount.
2 x Rubber O-Ring 25x2mm.

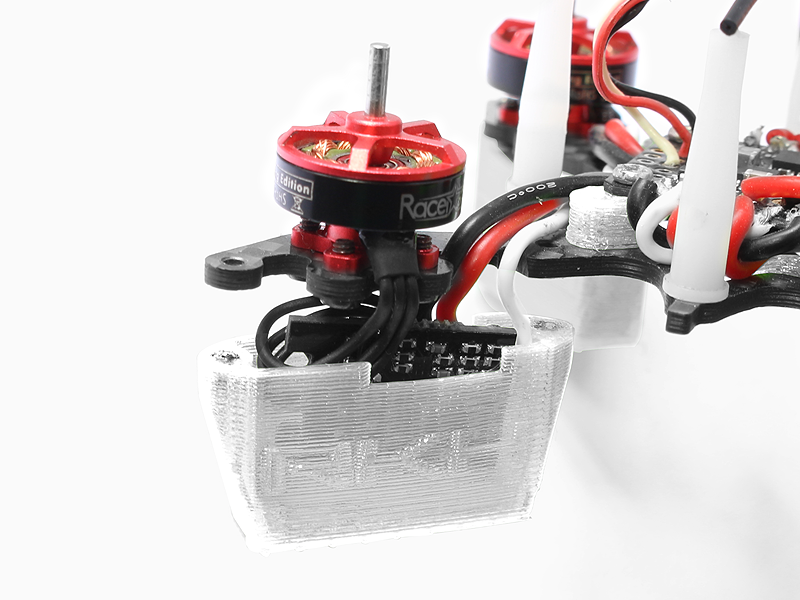

4 x White TPU 11x18mm ESC Mount.
4 x White Delrin 40mm Propeller Duct.



5. Needed To Complete:
a) FC: Furious FPV Racewhoop Smallest Brushless FC
b) Receiver:
- FuriousFPV LR1000 Mini Receiver for Frsky
or - Lemon Rx DSMX Compatible Diversity Satellite (DSM2 Backward Compatible But Must Use DSMX Compatible Primary Receiver)
or - Flysky FS-A8S FS A8S 2.4G 8CH Mini Receiver with PPM i-BUS SBUS Output
c) Motors: Furious FPV Brushless Motor 1103 10000KV
d) ESC: 1-2S 7A
e) Camera: FPV Camera and Mount
f) Propellers: Rakonheli 40mm 3 Blade Transparent Propeller (2CW+2CCW; 1.5mm Shaft)
g) Battery: 2S 300mAh Battery



6. Discuss:
https://www.facebook.com/groups/1431147893857468








Color: white
