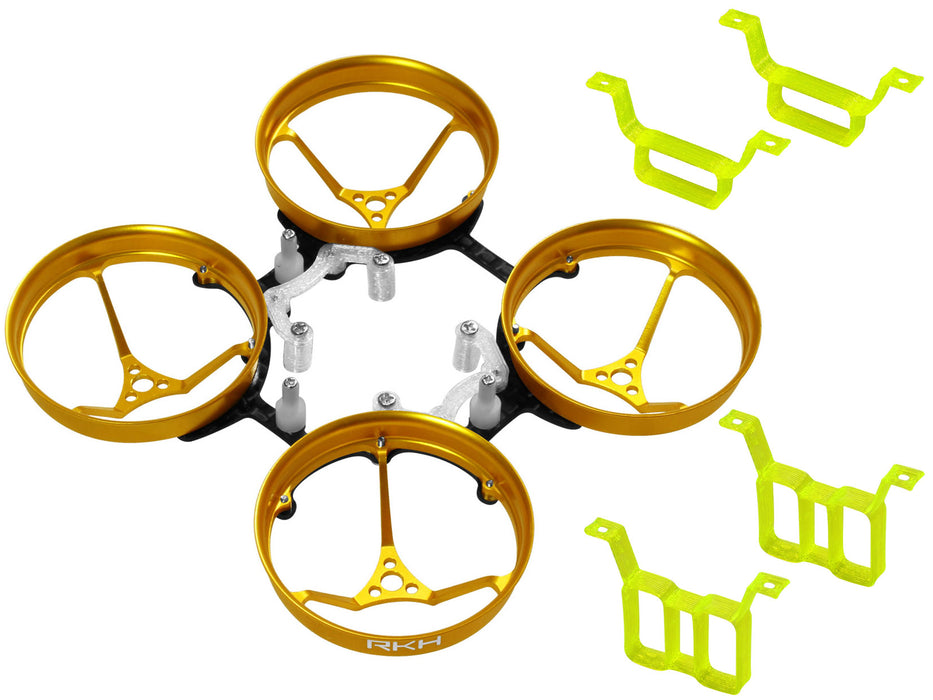

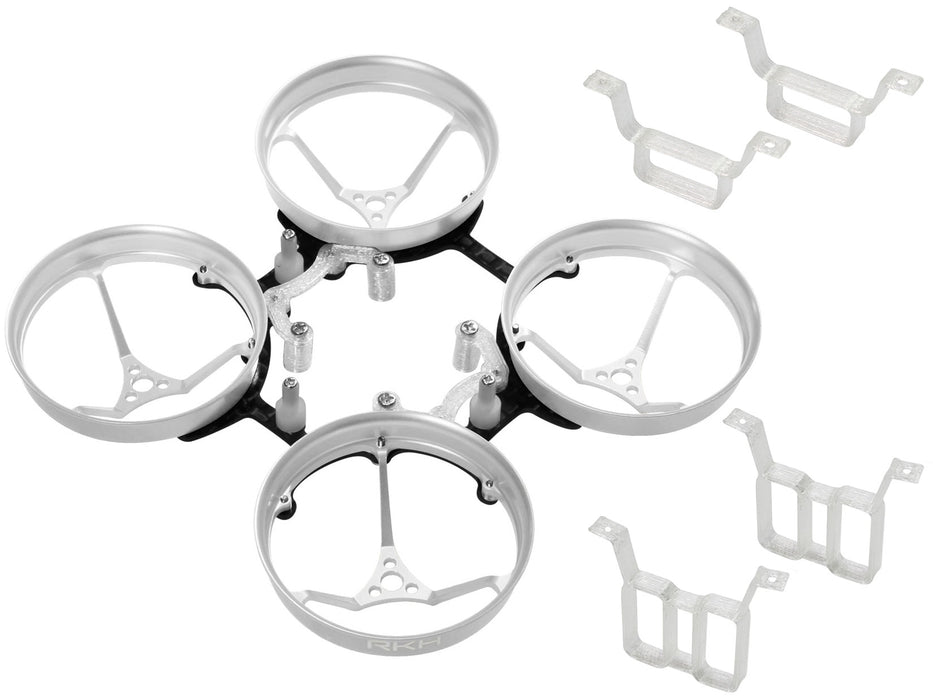

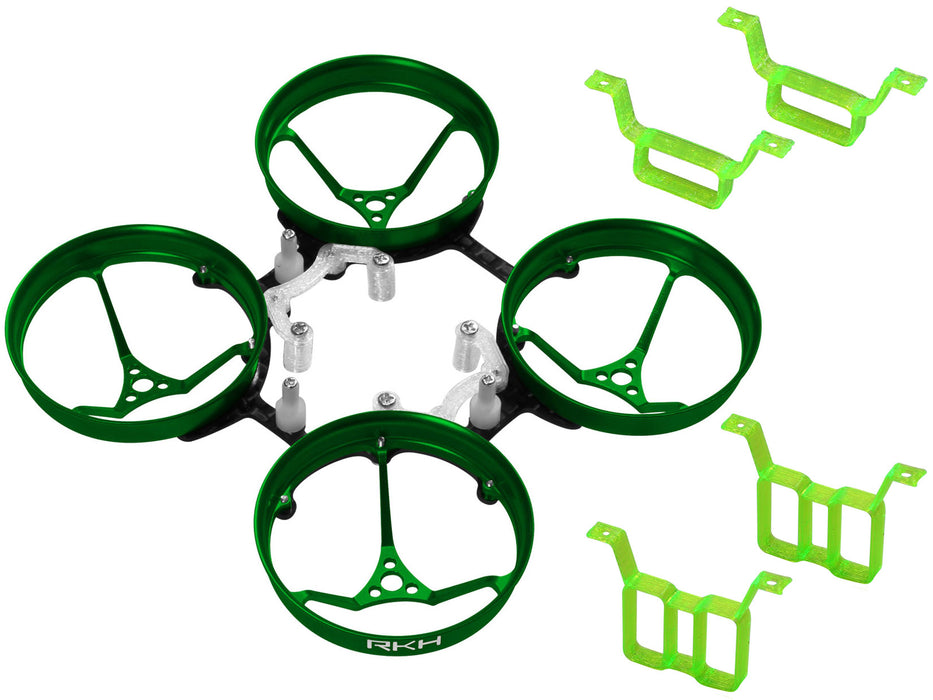

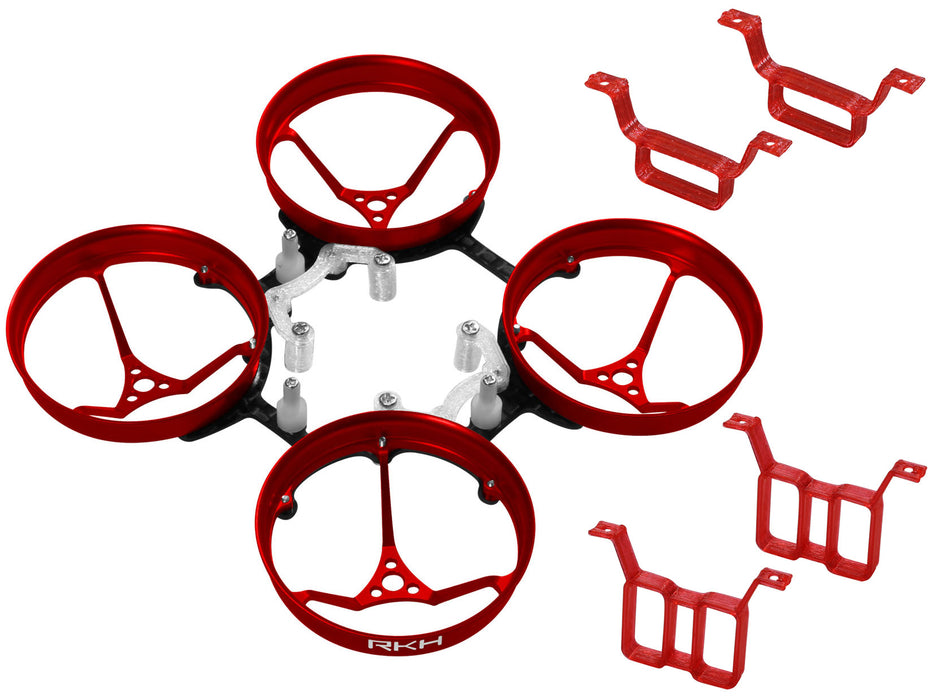

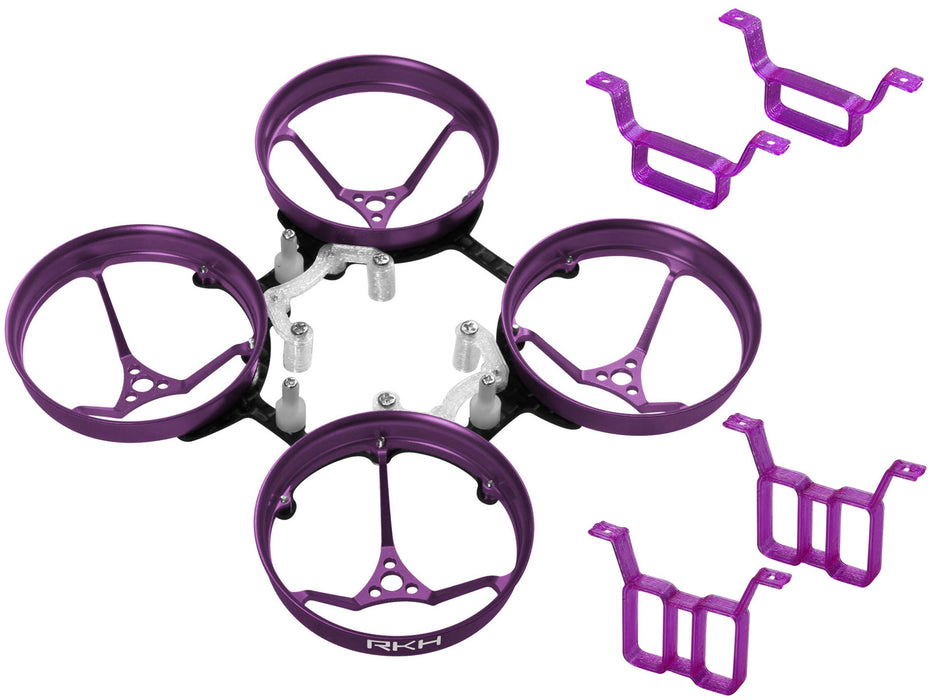

Rakonheli 1S, 2S AL Carbon 66mm Brushless Whoop Kit (for 0603, 0703 Motor)

Overview

Upgrade your RC model's structural rigidity, precision, and crash durability with the Rakonheli 1S, 2S AL Carbon 66mm Brushless Whoop Kit (for 0603, 0703 Motor). Precision-manufactured by RAKONHELI from 3K Pure Carbon Fiber & Aircraft-Grade CNC Aluminum 6061-T6, this component eliminates mechanical slop and flex found in stock plastic parts while maintaining an optimal strength-to-weight ratio for demanding performance.

Key Features & Specifications

• Designed for Fans of the Blade Inductrix Series and Tiny Whoop want to setup a 1S or 2S Smallest Brushless Motor Kit
• Material: Aluminum alloy, Delrin, TPU, 3K Pure Carbon Fiber and Stainless Steel Screws
• Main size: 66mm Frame, 31mm Propeller Duct, 1.0mm Thick Carbon Frame
• FC size: 16x16mm Square
• ESC size: 4in1 16x16mm Square
• Motor mount: 0603 or 0703 1-2S Racing Brushless Motor
• Weight (1S): 7.34(g) = 0.260(oz)
• Weight (2S): 7.47(g) = 0.265(oz)
• Part Number (SKU): 66BLW985-R
• Available Anodized Finishes: Red, Silver, Gold, Green, Blue, Black, Orange, Purple

Package Includes

• 1 x Rakonheli AL Carbon 66mm Brushless Whoop Kit (included hardware)
• 2 x Rakonheli TPU Battery Mount (1S) (SKU: 3DP006)
• 2 x Rakonheli TPU Battery Mount (2S) (SKU: 3DP021).
• 3. Recommended Setup:
• Flight Controller:
• 1 x FuriousFPV Racewhoop Smallest Brushless FC (SKU: FPV-0178-S)
• ESC:
• 1 x Fishpepper 5A BB2 48MHz DSHOT600 1-2S 4in1 ESC (SKU: FPV-0252-S)
• Receiver (one of these):
• 1 x 0.8g 2.4G DSM2 DSMX Pro Receiver for JR SPEKTRUM Transmitter (SKU: R0.8DSM2X)
• 1 x 0.9g 8CH Micro Receiver with SBUS PPM Output Binding Button for FRSKY Transmitter (SKU: R0.9FRSKY)
• Motors:
• 1S: 4 x GriffonFPV D0603 12000KV 1-2S Racing Brushless Motor (1.0mm Shaft) (SKU: D0603-12000KV)
• 2S: 4 x GriffonFPV D0603 8000KV 1-2S Racing Brushless Motor (1.0mm Shaft) (SKU: D0603-8000KV)
• Propellers:
• 1 x Rakonheli 31mm 3 Blade Transparent Propeller (2CW+2CCW; 1.0mm Shaft) (SKU: 3PROP3110-T)
• FPV Camera (one of these):
• 1 x Blade Helis Inductrix FPV+ 25mW Camera (SKU: BLH9606)
• 1 x Blade Helis Inductrix Pro FPV FX805 25mW Camera (SKU: BLH8517)
• FPV Camera Mount:
• 1 x Rakonheli TPU Camera Mount-20 Degrees (for BLH9606) (SKU: 3DP027)
• Battery: 1S 205mAh or 1S HV 255mAh.
