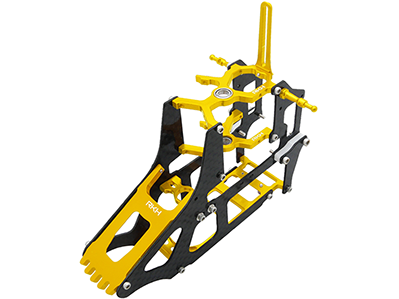

Rakonheli CNC AL and Carbon Advanced Main Frame - Blade 180 CFX, Trio 180 CFX

Overview

Upgrade your RC model's structural rigidity, precision, and crash durability with the Rakonheli CNC AL and Carbon Advanced Main Frame specifically engineered for Blade 180 CFX, Trio 180 CFX. Precision-manufactured by RAKONHELI from 3K Pure Carbon Fiber & Aircraft-Grade CNC Aluminum 6061-T6, this component eliminates mechanical slop and flex found in stock plastic parts while maintaining an optimal strength-to-weight ratio for demanding performance.

Key Features & Specifications

• Precision CNC Aluminum, Carbon Fiber and Delrin Main Frame.
• Stainless Steel Cap Screw and Steel High Quality Radial Bearing.
• Optimized for light weight and maximum rigidity, stability and durability.
• Assembly the servos without remove the canopy pin or battery tray easily.
• Compatible and replacement the Stock.
• And more this frame will allow you to use full size Flybarless units like the AR7200BX, Mikado V-BAR, SKOOKUM, IKON and Align 3GX.
• This setup require:
• 1) Micro JST Female To Regular Servo Male Converter (SKU: uJSTF-SM-1).
• 2) RKH's CNC AL Tail Servo Mount Set (SKU: 180CFX806) to have more space for the connectors.
• Option (not included):
• CNC AL Third Bearing Block Set (SKU: 180CFX423) to increase the stability of the gear transmission.
• Weight: Stock Frame Set: 24.42(g) = 0.861(oz).
• RKH's Frame Set: 23.27(g) = 0.820(oz). Lighter weight than Stock: 1.15(g) = 0.041(oz).
• Available Anodized Finishes: Red, Blue, Green, Black, Silver, Gold
• Compatibility: Use for Blade 180 CFX.

Package Includes

• CNC AL and Carbon Advanced Main Frame (1set).
• Hardware:
• (SKU: MR74-2) Radial Bearing ( MR74 ) 4x7x2mm (2pcs).
• (SKU: 173505W-10) 1.7x3.5x0.5mm Steel Washer (4pcs).
• (SKU: M1.6x3CS-10) M1.6x3mm Cap Screw (19pcs).
• (SKU: M1.6x4CS-10) M1.6x4mm Cap Screw (8pcs).
• (SKU: M1.6x5CS-10) M1.6x5mm Cap Screw (6pcs).
• (SKU: M1.6x8CS-10) M1.6x8mm Cap Screw (4pcs).
