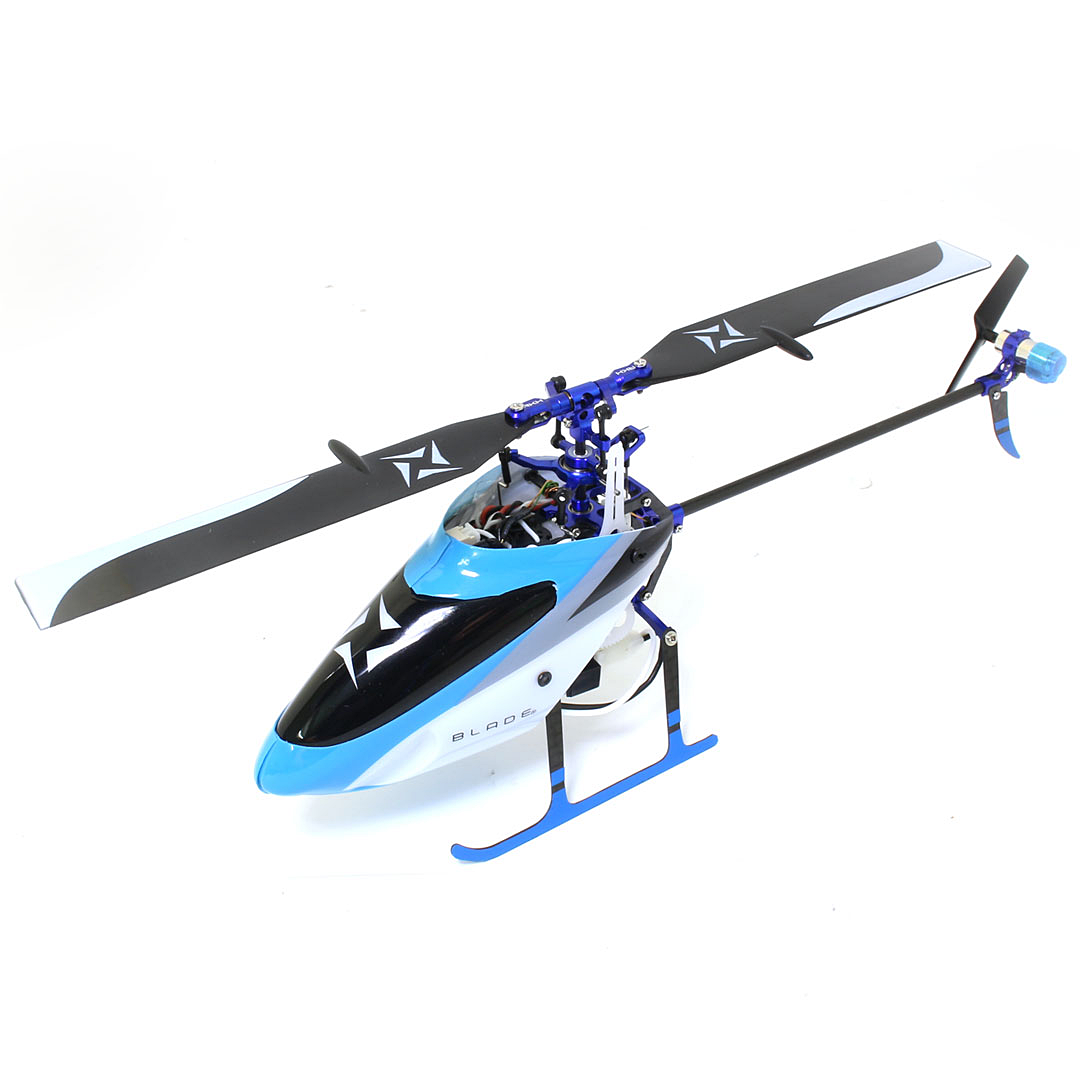

Rakonheli CNC Advanced Upgrade Kit - Blade Nano S2, S3

Overview

Upgrade your RC model's structural rigidity, precision, and crash durability with the Rakonheli CNC Advanced Upgrade Kit specifically engineered for Blade Nano S2, S3. Precision-manufactured by RAKONHELI from High-Precision Grade Materials, this component eliminates mechanical slop and flex found in stock plastic parts while maintaining an optimal strength-to-weight ratio for demanding performance.

Key Features & Specifications

• Utilize CNC milling and lathe machines for the production of high-quality components.
• Materials used include aluminum alloy, carbon, 3K pure carbon fiber, TPU, and Delrin/POM.
• Incorporate high-quality bearings, stainless steel screws, and washers for optimal performance.
• Prioritize weight optimization and durability.
• Specifically designed for compatibility with the Blade Nano S2 and S3.
• Engineered with precision by assembling the head and tail using aluminum components to ensure accurate control.
• Swashplate designed with a tilting angle capability of up to 21.7 degrees.

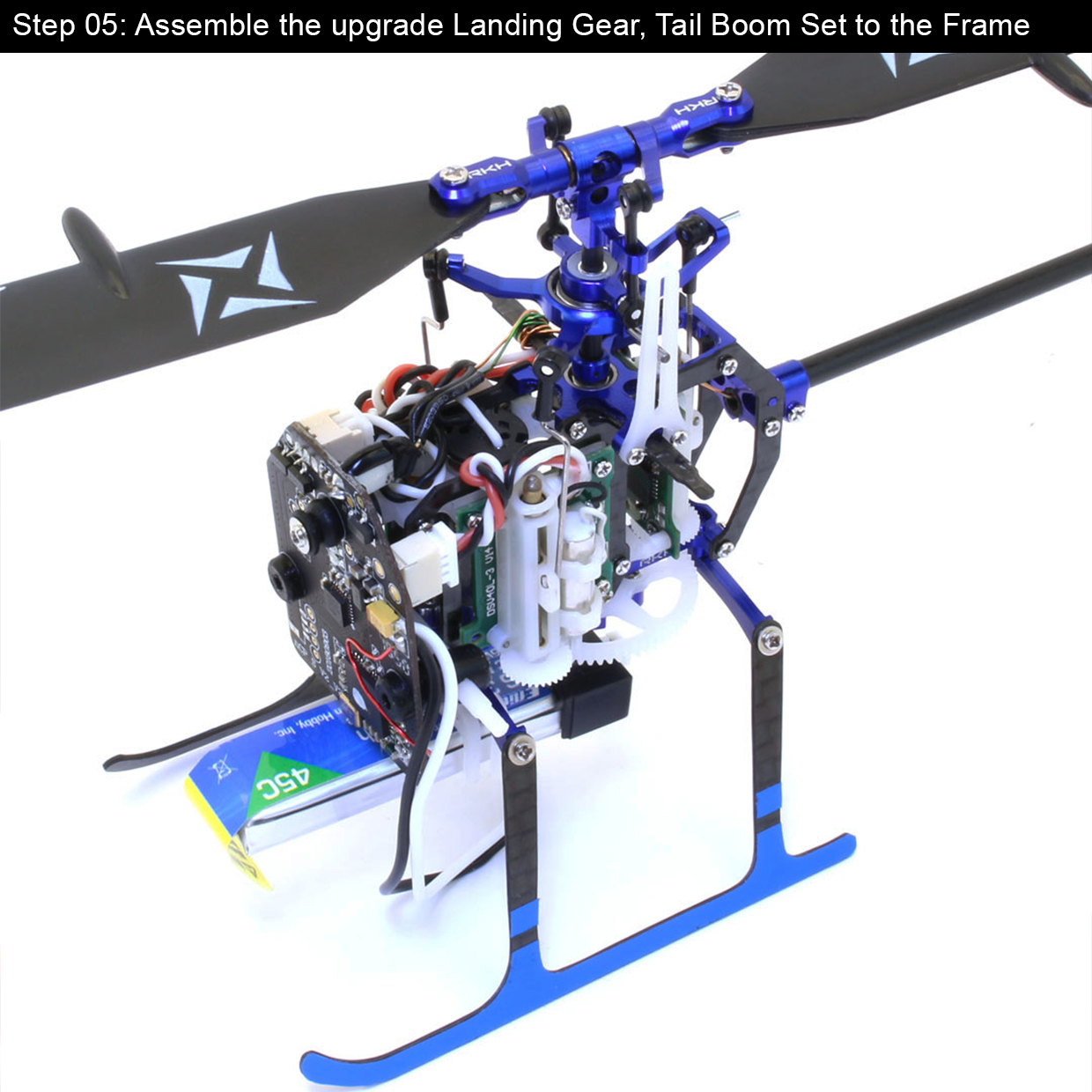

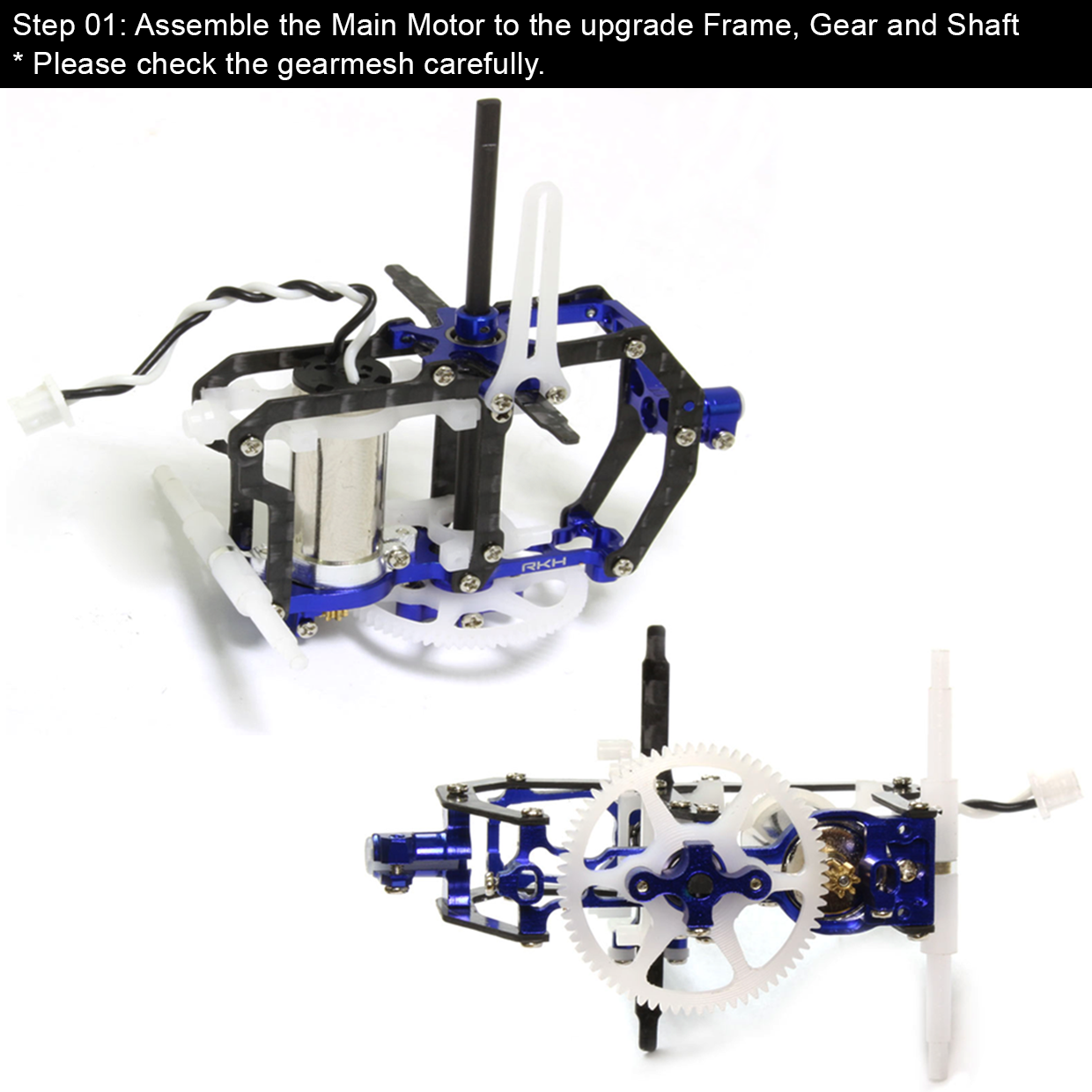

• Frame design includes a main motor mount for gearmesh adjustment and a landing gear mount with secure screws.
• Enhanced tail system stiffness through the use of Ø3mm carbon boom.

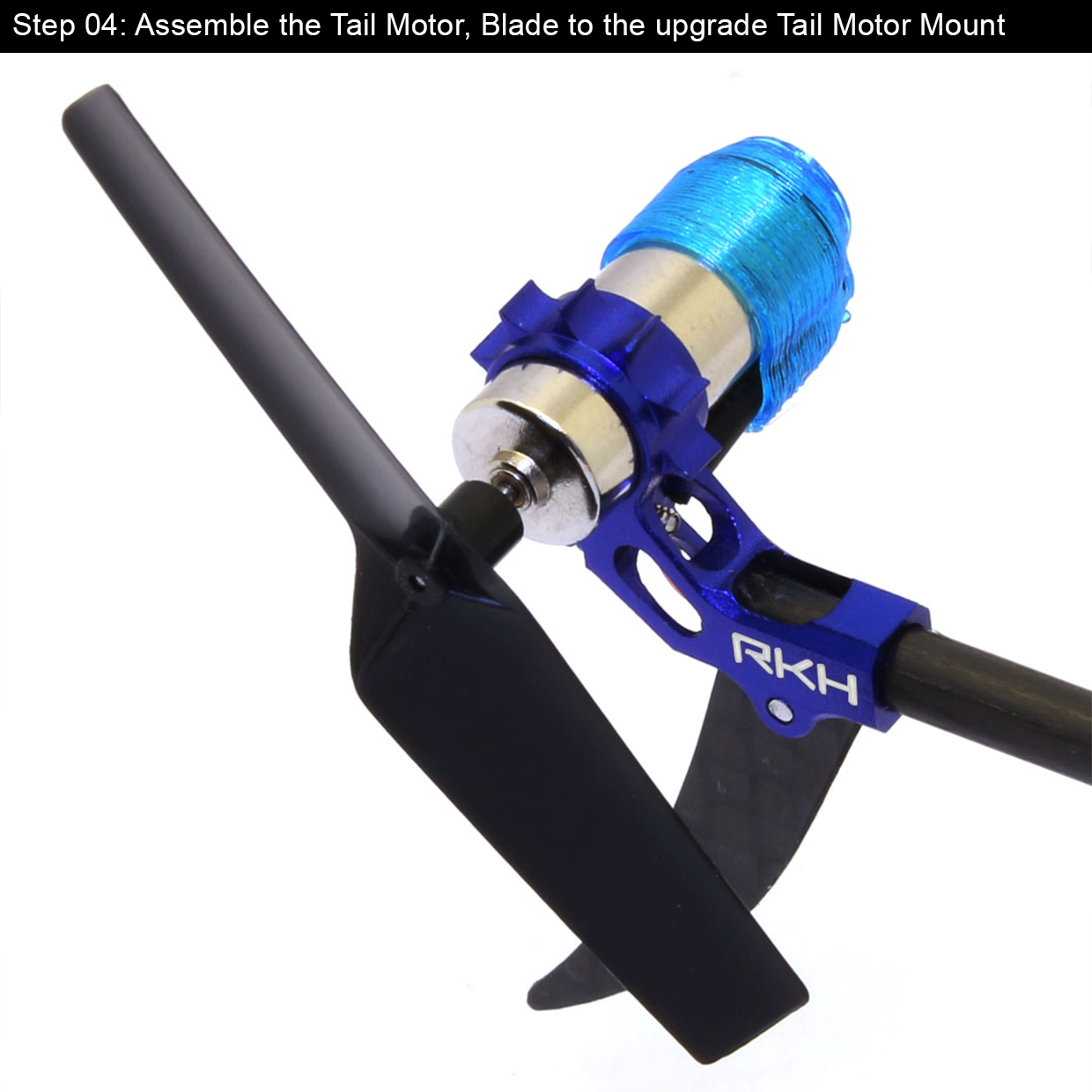

• Tail motor mount features an aluminum heatsink with a large contact area for improved efficiency and protection, supplemented by a TPU sleeve.
• Weight Comparison (excluding battery):
• Full Original: 26.72 g (0.94 oz).
• Full Rakonheli: 29.65 g (1.05 oz).
• Part Number (SKU): RKH01509-R
• Available Anodized Finishes: Red, Silver, Gold, Green, Blue, Black, Orange, Purple

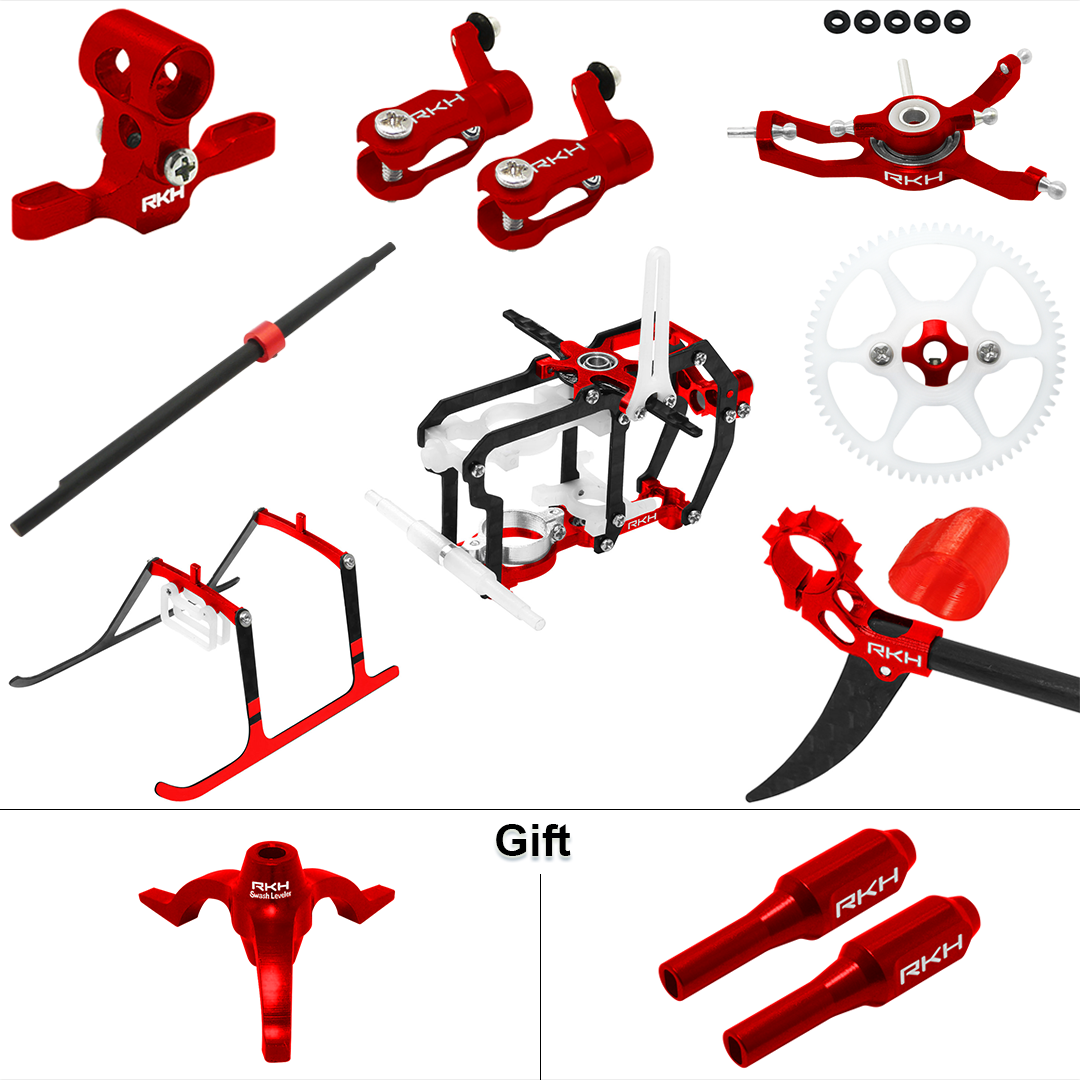

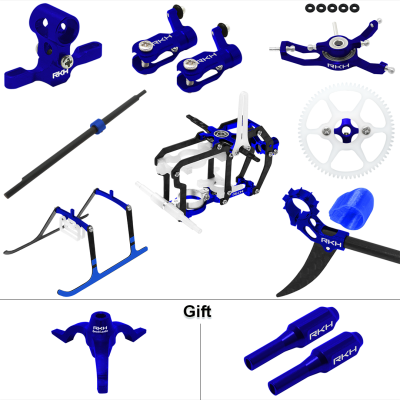

Package Includes

• 1 x Rakonheli CNC AL Main Center Hub Set (SKU: nCPX010), $14.99
• 1 x Rakonheli CNC AL Main Blade Grip Set (SKU: nCPX030), $24.99
• 1 x Rakonheli CNC AL Swashplate Set (SKU: nCPX178), $24.99
• 1 x Rakonheli CNC Aluminum Carbon Main Frame Set (SKU: RKH01504), $39.99
• 1 x Rakonheli CNC Aluminum Tail Mount 6mm Motor w/Ø3mm Boom Set (for Upgrade Frame only) (SKU: RKH01508), $21.99

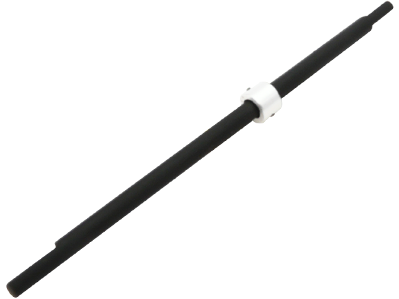

• 1 x Rakonheli Solid Carbon w/AL Collar Main Shaft (SKU: nCPX400), $5.99
• 1 x Rakonheli CNC Delrin 70T Main Gear w/AL Hub Set (SKU: nCPS303), $14.99
• 1 x Rakonheli CNC Aluminum Carbon Landing Gear Set (SKU: RKH01506), $24.99
• 1 x [Gift] Rakonheli CNC AL Swash Leveler (SKU: nCPXT01), $9.99
• 1 x [Gift] Rakonheli CNC Aluminum Spindle Tool Set (SKU: nCPST02), $7.99
