Rakonheli 1S, 2S Delrin Carbon 66mm Brushless Whoop Kit (for SunnySky 0703, 0705 Motor)

1. Description:
Designed for Fans of the Blade Inductrix/FPV/Pro and Tiny Whoop want to setup a 1S or 2S Smallest Brushless Motor Kit

- Material: Delrin, TPU, 3K Pure Carbon Fiber and Stainless Steel Screws

- Main size: 66mm Frame, 31mm Propeller Duct, 1.0mm Thick Carbon Frame

- FC size: 16x16mm Square

- ESC size: 4in1 16x16mm Square

- Motor mount: SunnySky 0703, 0705 Motor 1-2S Racing Brushless Motor

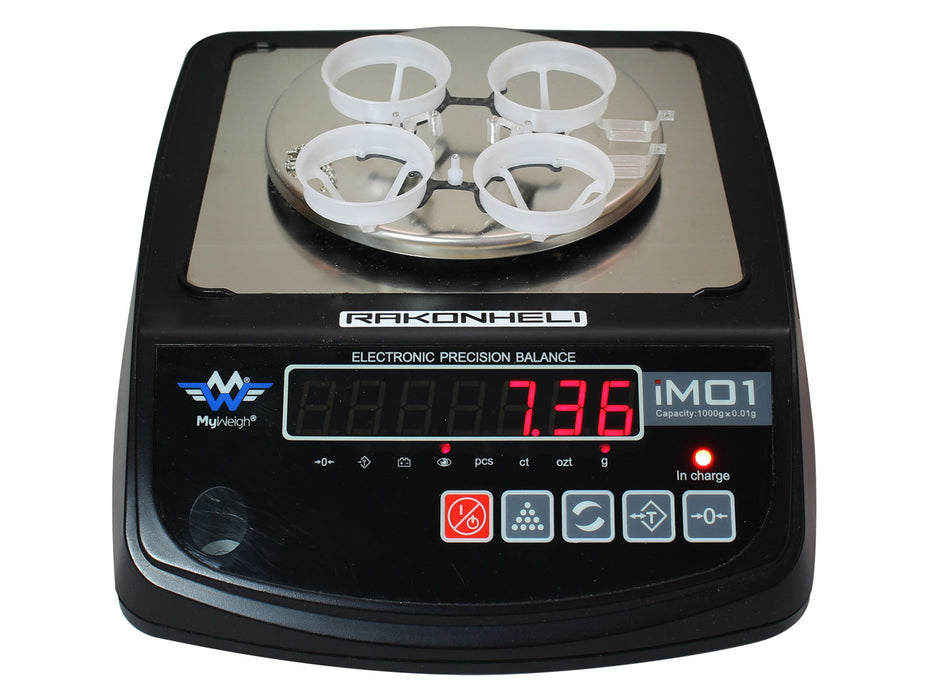

- Weight (1S): 7.36(g) = 0.26(oz)

- Weight (2S): 7.51(g) = 0.27(oz)




2. Package Included:
1 x Rakonheli Delrin Carbon 66mm Brushless Whoop Kit (included hardware)

2 x Rakonheli TPU Battery Mount (1S) (SKU: 3DP006)

2 x Rakonheli TPU Battery Mount (2S) (SKU: 3DP021).



3. Recommended Setup:
Flight Controller:

1 x FuriousFPV Racewhoop Smallest Brushless FC (SKU: FPV-0178-S)

ESC:

1 x Fishpepper 5A BB2 48MHz DSHOT600 1-2S 4in1 ESC (SKU: FPV-0252-S)

Receiver (one of these):

1 x 0.8g 2.4G DSM2 DSMX Pro Receiver for JR SPEKTRUM Transmitter (SKU: R0.8DSM2X)

1 x 0.9g 8CH Micro Receiver with SBUS PPM Output Binding Button for FRSKY Transmitter (SKU: R0.9FRSKY)

Motors:

1S: 4 x SunnySky 0703 12000KV 1-2S Racing Brushless Motor (1.0mm Shaft)

2S: 4 x SunnySky 0703 or 0705 8000KV-10000KV 1-2S Racing Brushless Motor (1.0mm Shaft)

Propellers:

1 x Rakonheli 31mm 3 Blade Transparent Propeller (2CW+2CCW; 1.0mm Shaft) (SKU: 3PROP3110-T)

FPV Camera (one of these):

1 x Blade Helis Inductrix FPV+ 25mW Camera (SKU: BLH9606)

1 x Blade Helis Inductrix Pro FPV FX805 25mW Camera (SKU: BLH8517)

FPV Camera Mount:

1 x Rakonheli TPU Camera Mount-20 Degrees (for BLH9606) (SKU: 3DP027)

Battery: 1S 205mAh or 1S HV 255mAh.
