Rakonheli 1S, 2S Delrin Carbon 76mm Brushless Whoop Kit (for 1103, SunnySky 0705 Motor)
1. Description:
RKH 76mm Brushless Whoop is designed for Drone's Fans who want to build a 2S Micro Ducted Brushless Motor Kit (requires knowledge base about RC systems and soldering skill).
- Material: Delrin, TPU, 3K Pure Carbon Fiber and Stainless Steel Screws.
- Main size: 76mm Frame, 40mm Propeller Duct, 1.0mm Thick Carbon Frame.
- FC mount: 16x16mm Square.
- ESC mount: 4in1 16x16mm Square.
- Motor mount: Racerstar BR1103 or SunnySky 0705 Motor.

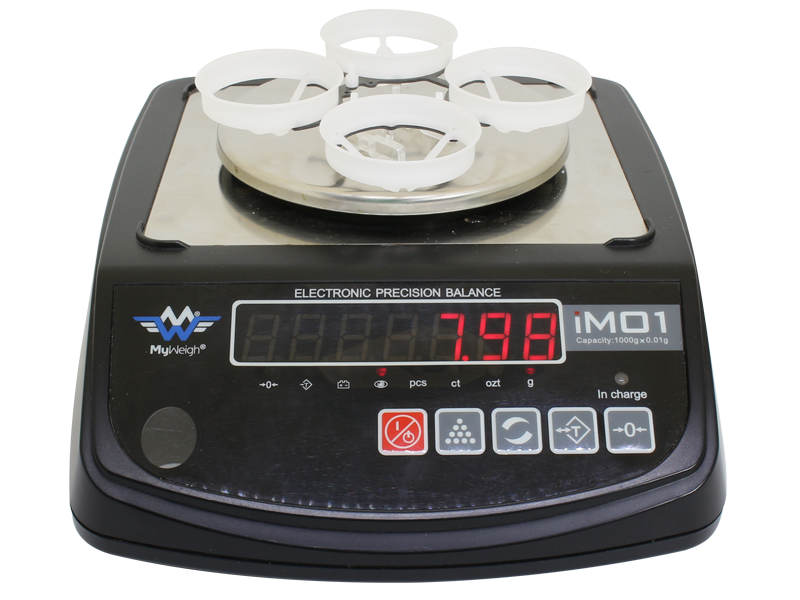

- Weight: 7.98(g) = 0.28(oz).
2. Package Included:
1 x Rakonheli 2S Delrin Carbon 76mm Brushless Whoop Kit (included hardware).
3. Needed To Complete:
FRSKY Version:
1 x FuriousFPV Racewhoop Smallest Brushless FC (SKU: FPV-0178-S)
1 x Fishpepper 5A BB2 48MHz DSHOT600 1-2S 4in1 ESC (SKU: FPV-0252-S)
4 x Racerstar BR1103 or SunnySky 0705 (8000KV-10000KV) 1-2S Racing Brushless Motor
1 x 8CH Micro Receiver with SBUS PPM Output Binding Button for FRSKY Transmitter
1 x FX805 FPV Camera 25mW or 5.8G 25mW VTX600TVL FPV Camera
1 x FPV Camera Mount (SKU: 3DP001, 3DP013)
2CW+2CCW Rakonheli 40mm 3 Blade Transparent Propeller
2 x Battery: 1S 250mAh or 1S HV 255mAh.
SPEKTRUM DSM2 DSMX Version:
1 x FuriousFPV Racewhoop Smallest Brushless FC (SKU: FPV-0178-S)
1 x Fishpepper 5A BB2 48MHz DSHOT600 1-2S 4in1 ESC (SKU: FPV-0252-S)
4 x Racerstar BR1103 or SunnySky 0705 (8000KV-10000KV) 1-2S Racing Brushless Motor
1 x 2.4G DSM2 DSMX Pro Receiver for JR SPEKTRUM Transmitter
1 x FX805 FPV Camera 25mW or 5.8G 25mW VTX600TVL FPV Camera
1 x FPV Camera Mount (SKU: 3DP001, 3DP013)
2CW+2CCW Rakonheli 40mm 3 Blade Transparent Propeller
2 x Battery: 1S 250mAh or 1S HV 255mAh.
